SYRINGE PUMP
SMART-SP
The SMART-SP syringe pump is developed for professionals who require high precision and stable flow rates. It combines premium features with an accessible price.
- Wide flow rate range from 18.4 pL/min to 58.9 mL/min.
- 4.3" touch screen with user-friendly menu design
- Infuse and withdraw modes
- Automatic calculation of all values with smart software
- Detailed flow programming with cycle feature
- Holder design compatible with all syringe brands and models
- Store up to 100 user profiles
LABORATORY SYRINGE PUMP APPLICATIONS
- Microfluidic studies
Provides pulse-free and stable flow at pL/min levels for lab-on-a-chip systems; manages micro-scale liquid manipulation with precision.
- Electrospinning
Delivers polymer solutions to the needle tip at the exact desired speed. Offers high delivery stability for uniform fiber diameter and continuous production.
- Chemical synthesis and reactor feeding
Transfers reagents into the reactor at defined ratios for continuous flow chemistry. Automates complex dosing protocols with the cycle feature.
- Analytical Instrument Injection and Calibration
Provides direct sample injection into systems such as mass spectrometers. Offers high accuracy in analytical calibration processes with a minimum margin of error.
- Controlled Drug Release Experiments
Precisely simulates in-vivo flow profiles to test drug release rates and biomaterial interactions in in-vitro studies.
- Sensor Development (SPR/QCM-D)
Manages analyte delivery to the biosensor surface and surface cleaning processes. Provides bidirectional flow control with push and pull modes.
Intellıgent Software
The combination of a 4.3″ wide touchscreen and intelligent software brings all controls to a single screen. Offers a user experience that requires no learning, as fluid and intuitive as a smartphone.
All calculatıons and unıt conversıons are automatıc.
Intelligent Calculation & Perfect Precision
The Asensis SMART SP intelligent software eliminates the need for manual calculations and spreadsheet tracking. Simply enter the diameter and speed, and leave the rest to your device.
- Wide Unit Support: Flawless conversion from mL/min and µL/min values down to ultra-precise nL/min (nanoliter) and pL/min (picoliter) levels.
- Automatic Calibration: Intelligent software that instantly optimizes the stepper motor frequency and linear speed based on the syringe inner diameter (ID).
- Zero Error Margin: A microfluidics-focused user interface that eliminates the risks of table reading and unit conversion errors.
100 user profıles
It doesn’t matter how much your research group grows. You can create separate profiles for each user and have your entire team use the same system with personalized settings.

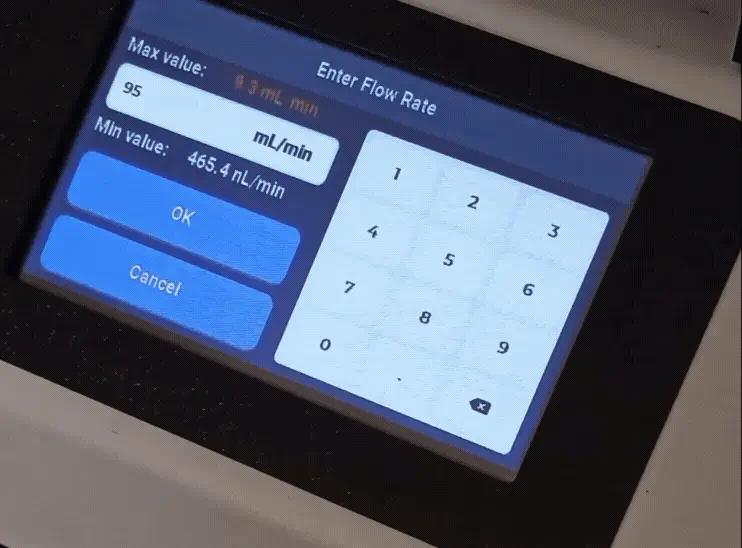

No errors, no error codes
The intelligent software only allows the entry of valid values and clearly displays all limits on the screen. Out-of-range entries are immediately blocked with a red warning. This ensures safe, error-free, and controlled usage throughout the process.
All advanced features ın one place.
- Offers full control in both infuse and withdraw modes. All parameters set for infusion apply with the same precision and consistency in the withdrawal direction. A single device, flawless bidirectional performance.
- Whether you define the operation time or the total flow volume, the system automatically manages the process within the limits you set, ensuring full control and safe operation.
- Thanks to the cycle feature, you can create highly detailed and repeatable flow profiles. Cycle parameters can be defined by both time and volume, providing complete flexibility and control over the flow.
Wıde flow rate range.
Provides precise flow across an exceptionally wide range, from ultra-low flow rates like 18.4 pL/min to very high values like 58.9 mL/min. A single device is sufficient for all your flow experiments.
Hıgh precısıon and repeatabılıty.
- High positioning precision ensures your fluids are transferred with maximum accuracy. Each device is delivered with a test report documenting its performance.
- It offers superior repeatability required for reliable results. Each device is shipped with a repeatability report verifying this performance.
Technıcal parameters
Modes
Infuse, Withdraw
Syringe volume
0.5mL-60mL
Number of channels
1
Syringe internal diameter
0.1mm-40mm
Minimum flow rate
18.4pL/min (With 0.1 mm syringe inner diameter)
Maximum flow rate
58.9mL/min (With 40 mm syringe inner diameter)
Compatible syringes
Thanks to its special clamp design, it is compatible with syringes of all brands and models.
Operating voltage
12 V
Operating current
800 mA
Accuracy
± %0.1
Repeatability
± %0.1
Number of programmable profiles
100
Display
4.3″ resistive touchscreen
Maximum stroke
120mm
Pulastion
Pulsation-free
References
3 year full warranty
Our scientific instruments are designed to operate for years without any failure. However, should you encounter any issues, all our devices are fully covered by a 3-year warranty.
